The performance influence of compressor efficiency

The compressor area is the largest energy consumer in a gas turbine, consuming approximately 60‐ 65% of the energy. 1 Even the smallest changes in compressor efficiency have a noticeable impact on the overall performance of a gas turbine. According to General Electric, contamination on the compressor, better known as fouling, is responsible for 70‐85% of the power losses of a gas turbine.2 The main cause is often inefficient filtration of the supply air. However, the performance deficit can be sustainably reduced by efficient filtration, as the following field report demonstrates .

1 Cf. E. Schneider (2010): Analysis of compressor on-line washing to optimize gas turbine power plant performance.

2 Cf. J. Janawitz / C. Childs (2015): Heavy-Duty Gas Turbine Operating and Maintenance Considerations.


Stabilization of the compressor efficiency with an EMW® filter upgrade

Case Study
Case Study

Site conditions

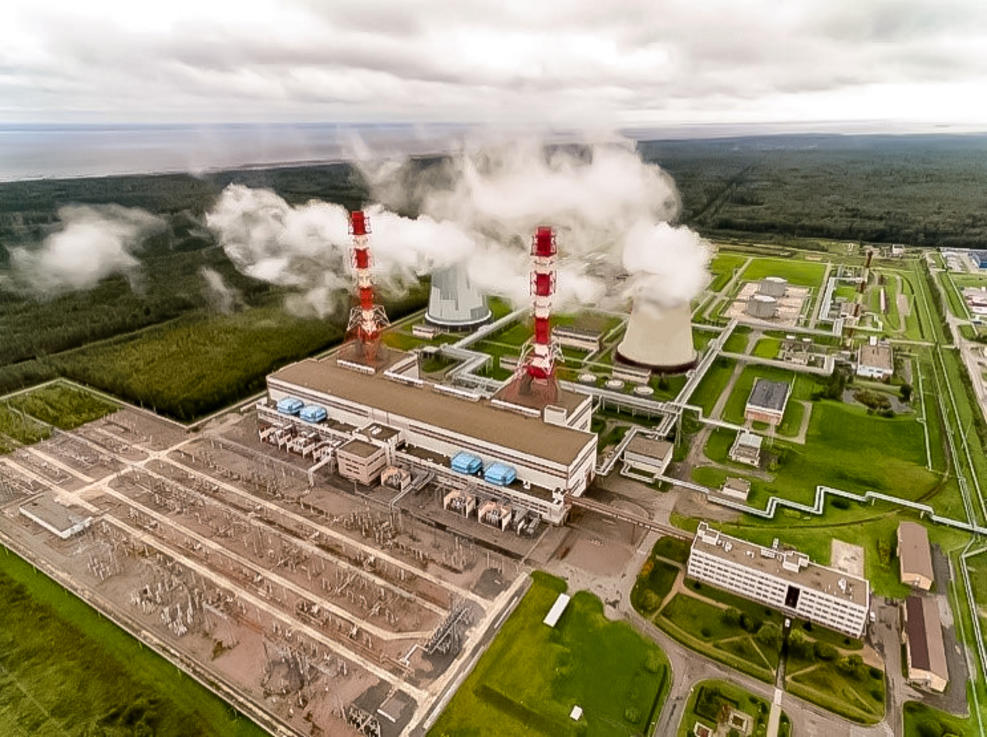

Site Coastal region in Northern Europe
GT-type 4x Siemens SGT5-2000E (V94.2)
Problem Steady decrease of compressor efficiency by an average of 2.18% within an observation period of 2 1/2 years despite cleaning of the compressor .
Former end filter Compact filter in filter class F7
EMW® filter-upgrade (H)EPA compact filter GT in filter class E11
Results Stable compressor efficiency
Effective blade protection without compressor cleaning
Increased availability
Reduced fuel consumption
Increased operating efficiency

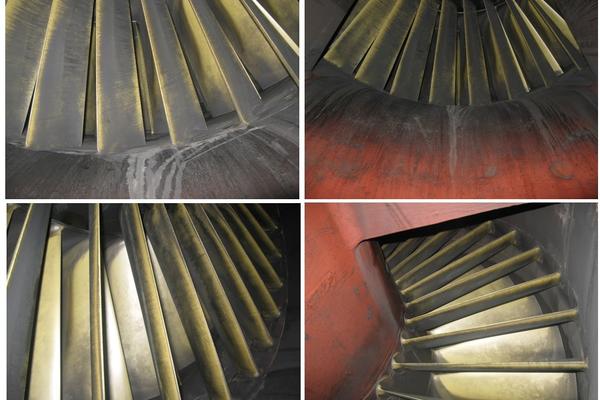

Heavy contamination despite regular cleaning of the compressor led to performance losses .

Heavy contamination despite regular cleaning of the compressor led to performance losses .

The original filter system was not able to cope with the adverse conditions. The compressor efficiency dropped by an average of 2.18% during the observation period of 2 1/2 years. In the case of heavy particle loading, more severe efficiency losses occurred within a few days. To minimise the efficiency losses in the short term, the gas turbine compressor was cleaned every 2 weeks during operation, but without lasting success. In addition, a thorough offline cleaning of the compressor was carried out every year .

The reduced compressor efficiency had a no ceable effect on the overall performance of the gas turbine. According to a study by Ulf Schirmeister and Frederick Mohr, a 1% decrease in compressor efficiency is accompanied by a 0.4% decrease in gas turbine efficiency.3 In this case, the gas turbine's output level experienced a decrease of up to 2.18%. The main culprit for the output deficit was an inefficiently acting filter system.

3 Cf. U. Schirmeister / F. Mohr (2016): Impact of enhanced GT air filtration on power output and compressor efficiency degradation.


Gas turbine SGT5-2000E
Nominal power 187 MW
Reduced compressor efficiency Ø 2,18%
Compressor cleaning 2x online / month
1x offline / year

In order to make a comparison at the site, EMW® installed a filter upgrade of (H)EPA filter class E11 on another gas turbine during the same period. With lasting success for the power plant operation !

The filter‐upgrade
The filter‐upgrade

Original filter system vs. EMW® filter upgrade


(420 filters per filter stage ) Original filter system
EMW Filter‐upgrade
Gas turbine
GT 1
GT 2
End filter
Compact filter GT in F7
Compact filter GT in E11
Volume flow per filter
3669 m³/ h
3669 m³/ h

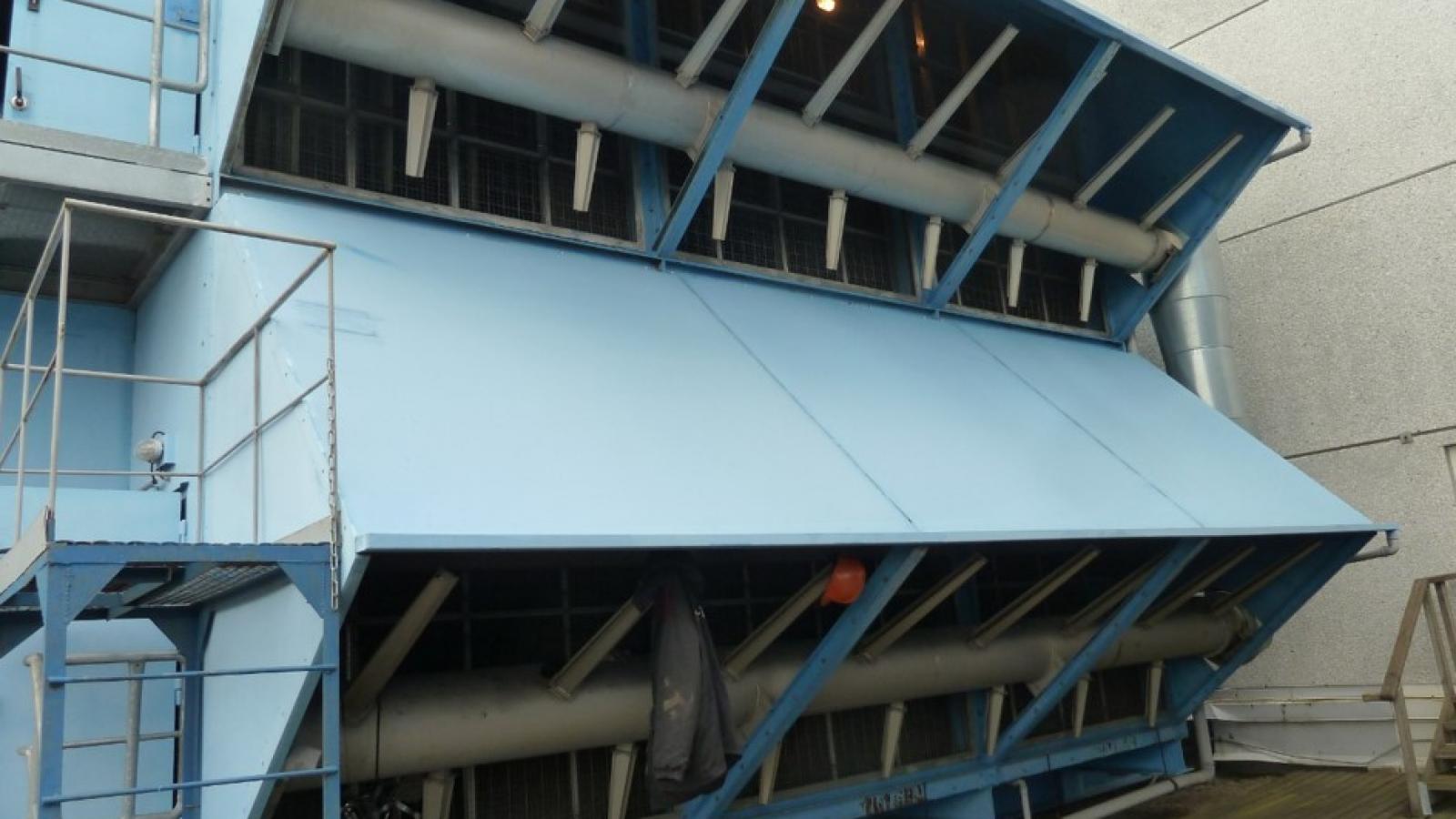

The supply air enters the filter house via three inflow sides. 420 air filters are installed per filter stage. The volume flow is approx. 3669 m³/h per filter. Previously, the last filter stage contained a compact filter of filter class F7 according to EN 779. EMW® has implemented an upgrade with a GT compact filter of (H)EPA filter class E11 in a filter house and compared the results of the compressor efficiency in parallel operation.

No changes to the filter house were necessary to implement the filter upgrade!

According to the operator, the initial pressure difference of the end filter stage showed an increase of only 8 per cent from approx. 120 Pa to 130 Pa. This is because, in comparison, the (H)EPA end filter from EMW® stands out with a filter area that is almost 55 percent higher than the original end filter in F7. The development of the pressure difference was stable for the EMW® filter system during the runtime. In the comparison period of 2 ½ years, the pressure difference of the (H)EPA air filter from EMW® increased by 150 Pa. A filter change was not necessary during this period .


End filter of the original filter system
(H)EPA End filter EMW® Filter‐upgrade
Initial pressure difference End filter 3669m³/h Approx. 120 Pa Approx. 130 Pa
Service life 2 1/2 years 2 1/2 years
End pressure difference after 2.5 years
250 Pa 280 Pa


An increase in the pressure difference has a linear effect on the output as well as the fuel consumption of a gas turbine. A pressure increase reduced by 50 Pascal can result in an increased output of approx. 0.1% (cf. Wilcox 2010: p. 15). However, various studies indicate that significantly greater optimisation potentials can be realised through higher efficiency of a filter system or through higher quality of the contributed air quality. The following results of this study are similar .


Results
Results

Effect of the (H)EPA filter upgrade on compressor efficiency

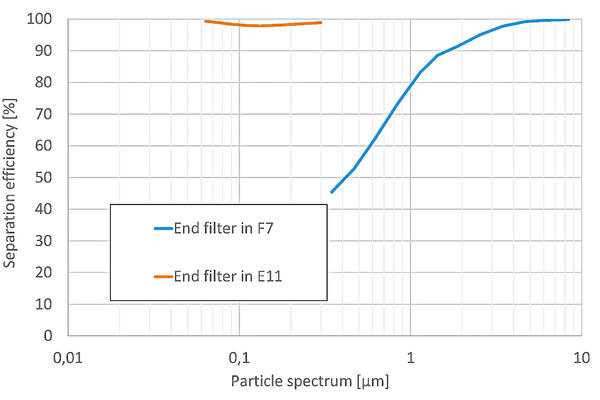

As can be seen in the following chart, the collection efficiency of the original compact filter in F7 has a significantly lower collection efficiency in the particle spectrum <0.3 µm than the (H)EPA compact filter in E11 from EMW®. It is particularly important to prevent this particle spectrum from entering the compressor in order to ensure compressor efficiency. Because the goal of the power plant team and the EMW® team was: to stabilise compressor efficiency!

The significant differences in the separation efficiency of the air filters had a direct impact on the appearance of the respective gas turbine compressor, as the following photographs illustrate.

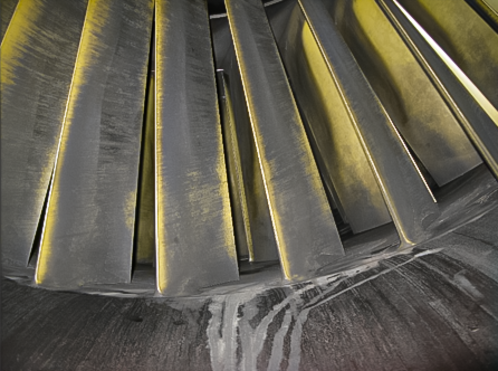

Compressor GT#1 with original filter system

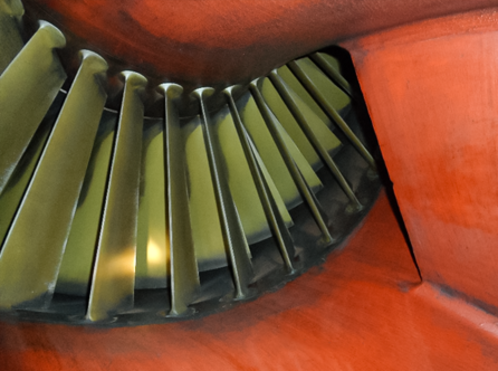

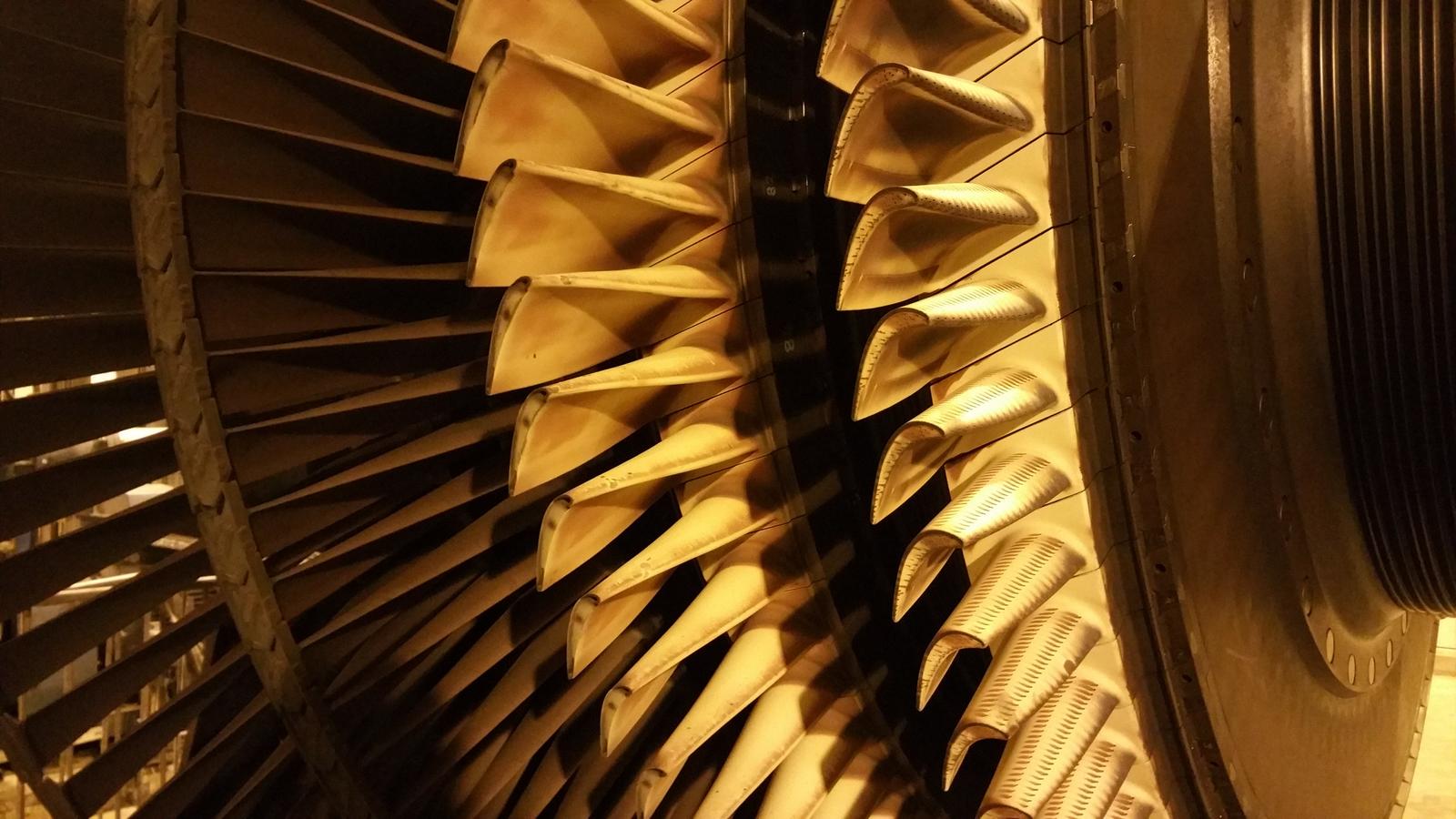

Compressor GT#2 with EMW® filter ‐upgrade

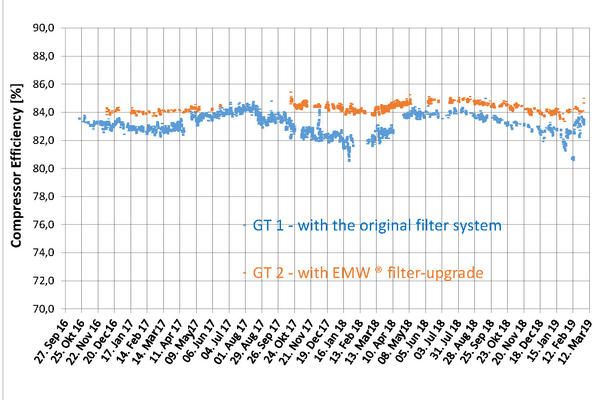

The significantly cleaner appearance of the compressor had a direct impact on its efficiency. Whereas the compressor efficiency at GT#1 showed losses of 2.18% on average despite continuous cleaning of the compressor, the compressor efficiency losses (isentropic) at GT#2 with the EMW® upgrade remained stable between 0 ‐ 0.11% over 2 ½ years. At the same time, the unit continuously operates at a higher level of compressor efficiency, while the unit with the original fine filter system only achieves a similar efficiency level for a short time and then immediately drops again. No cleaning of the compressor took place over the period on the gas turbine in question, which was equipped with the (H)EPA upgrade from EMW®.

The GT with the original air filter system showed an average power loss of 2.2 MW per operation hour, whereas the GT with the upgraded HEPA E11 filter system showed during the same time only a power loss of approx. 350kW. Due to the continuously optimised compresser efficiency, the fuel consumption was reduceed by approx. 405 kg per operation hour. Accordingly, the CO2 emissions were reduced by approx. 1526 kg, which leaves an environmental footprint.



As a result of the successful upgrade, all gas turbines at the site are now operated with EMW® (H)EPA compact filters.
