ATEX Panel Filter : For Use in all EX Zones

EMW®‘s ATEX-certified air filters comply with ATEX Directive 2014/34/EU (formerly 94/9/EC) and are suitable for use in all EX zones. Designed for heavy-duty offshore applications, the new ATEX panel filter provides reliable operation under even the toughest conditions.

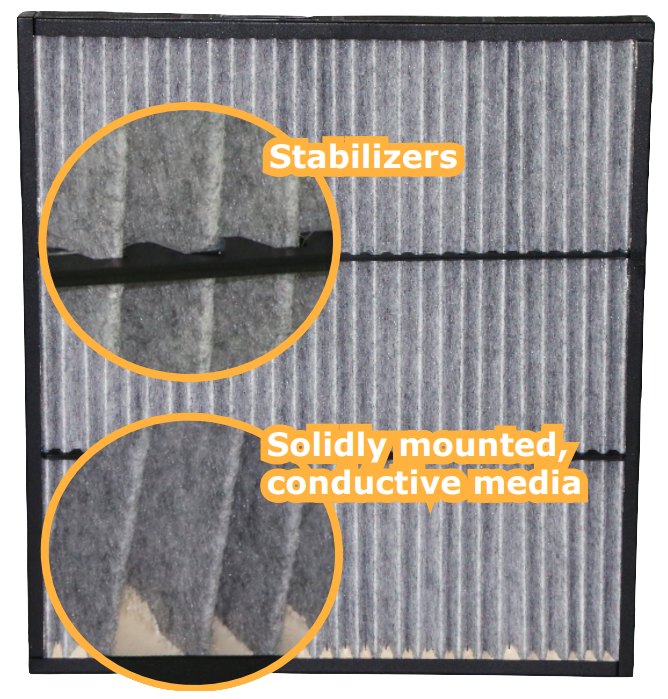

Stabilizers integrated in the filter protect and maintain the pleat pattern in the media, ensuring low initial pressure drop with minimal increase in subsequent operation.

The conductive synthetic media is solidly mounted around its entire perimeter in a dissipative plastic frame. A seamless cast-in-place seal holds the air filter firmly in place without leakage.

Dimensions

ATEX-Panel Filters

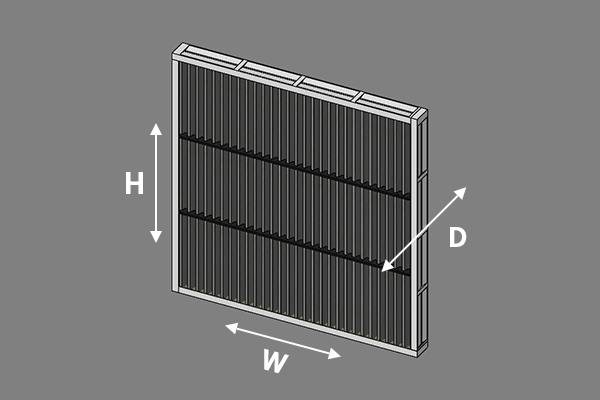

WxHxD: 592x592x48mm
ATEX-Panel Filters

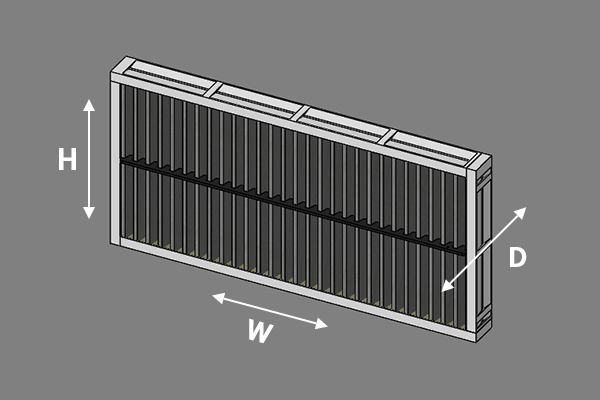

WxHxD: 592x287x48mm
ATEX-Panel Filters

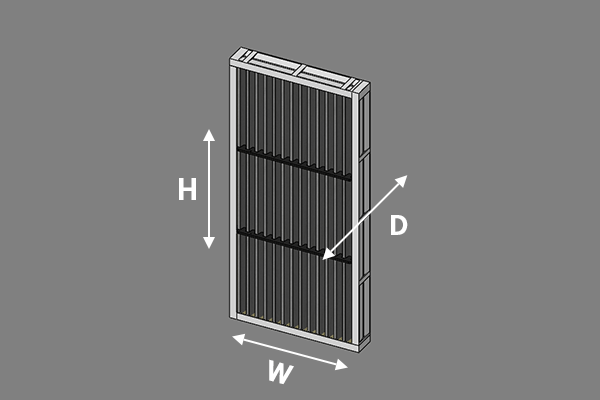

WxHxD: 287x592x48mm

Performance Data

Dimensions:
592x592x48mm

ISO 16890 Filter Group:
ISO Coarse 80%

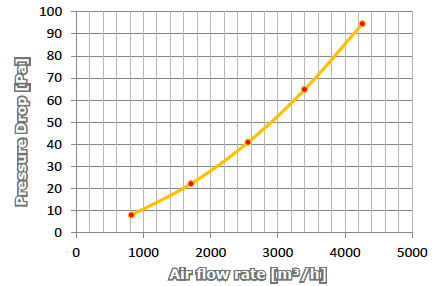

Initial Pressure Drop:
65 Pa @3400m³/h
