Filter Mounting Frames

made of galvanized steel sheet

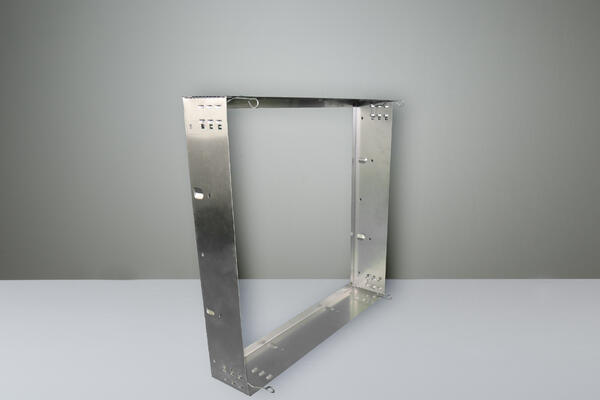

EMW filter mounting frames are fabricated from galvanized steel sheet "L" bars. Their adjustable clamping springs make them ideally suited for mounting all common-sized pocket and compact filters as well as combined filter systems.

The filter mounting frames are easily screwed together as desired to from complete filter consoles. The filter is held tightly in place by spring clamps located at each of its 4 corners. Two stops and two spring pivot points allow precise fixing of the filter in the frame at a height of 25 mm or of 50 mm.

Filter Mounting Frames

Dimensions

Standards:

  • 610 x 610 x 70 mm
  • 508 x 610 x 70 mm
  • 305 x 610 x 70 mm

Special stainless steel versions are available upon request.
