Pocket Filters M5 - F9

EMW® medium & fine dust filters are primarily used in turbomachinery air intake systems, ventilation and air conditioning systems, laboratories, chemical and pharmaceutical plants as well as fume removal hoods at workplaces.

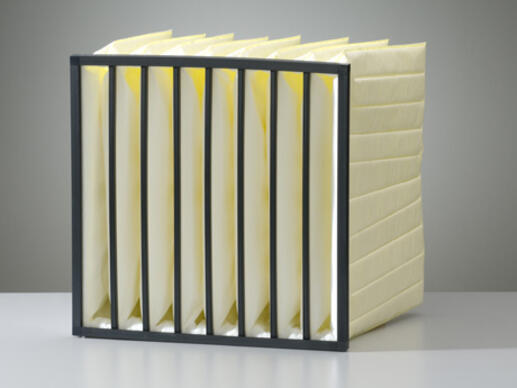

These pocket filters - available in stitched and welded versions - are made of synthetic or glass-fibre media fulfilling filter classes M5 - F9.

EMW® medium & fine dust filters are available with plastic or metal frames. If required by the intended application, they can be equipped with a continuous foamed-in-place seal as an additional option.

These products are available in a variety of standard sizes. Special sizes are available as well on request.

Characteristics

  • Filter classes M5 - F9 (EN 779)
  • Reliable service even at 100% relative humidity
  • Housed in fully incinerable, corrosion-proof plastic frame

Application Fields

Standards:

- 592 x 592 x 360 mm

- 592 x 592 x 500 mm

- 592 x 592 x 600 mm

- 592 x 592 x 635 mm

- 490 x 592 x 360 mm

- 490 x 592 x 500 mm

- 490 x 592 x 600 mm

- 490 x 592 x 635 mm


- 287 x 592 x 360 mm

- 287 x 592 x 500 mm

- 287 x 592 x 600 mm

- 287 x 592 x 635 mm

Other dimensions available on request

Technical Data

S55 KR-6/600SG S65 KR-6/600SG S75 KR-8/600SG S85 KR-8/600SG S95KR-8/600SG
Number of pockets 6 6 8 8 8
Filter Class (EN 779) M5 M6 F7 F8 F9
Nominal air flow [m³/h] 3400 3400 3400 3400 3400
Average Efficiency of 0.4 µm particles ≥40% ≥60% ≥80% ≥90% ≥95%
Initial Pressure Differential 40 Pa 60 Pa 85 Pa 115 Pa 160 Pa
Dust Holding Capacity* 328 g 342 g 556 g 446 g 158 g

*Dust holding capacity was determined according to EN 779 up to a final pressure differential of 450 Pa. Operation to higher final pressure differentials results in increased dust holding capacity.
