Pocket Filters G3 - G4

EMW® coarse dust filters are primarily used in turbomachinery air intake systems, ventilation and air conditioning systems, laboratories, chemical and pharmaceutical plants as well as in fume removal hoods at workplaces.

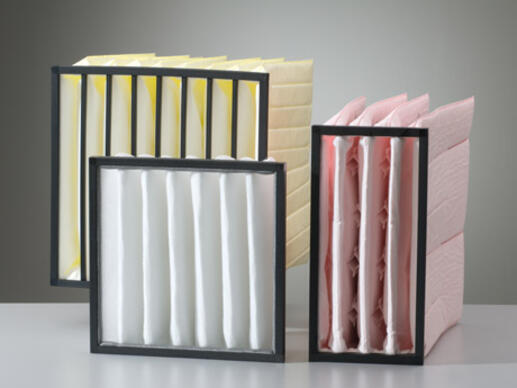

These pocket filters - available in stitched and welded versions - are made of synthetic media fulfilling Filter Classes G3 - G4. (Pocket filters in filter classes M5-F9 can be found under medium and fine dust pocket filters)

EMW® coarse dust filters are available with plastic or metal frames. If required by the intended application, the prefilter can be equipped with a continuous foamed-in-place seal as an additional option.

These products are available in a variety of standard sizes. Special sizes are available as well on request.

Characteristics

  • Fully synthetic filter media
  • Filter Classes G3 – G4 (EN 779)
  • Reliable service even at 100% relative humidity
  • Housed in fully incinerable, corrosion-proof plastic frame

Application Fields

Dimensions:

- 592 x 592 x 180 mm

- 592 x 592 x 190 mm

- 592 x 592 x 360 mm

- 592 x 592 x 600 mm


- 490 x 592 x 360 mm

- 490 x 592 x 600 mm

- 287 x 592 x 360 mm

- 287 x 592 x 600 mm

- 500 x 500 x 180 mm

- 500 x 500 x 360 mm

Other dimensions available on request

Technical Data

S45 KR-7/180 N S45 KR-7/360 N S45 KR-10/190 NG S45 KR-6/360 SG S45 KR-6/600 SG
Dimensions [mm] 500x500x180 500x500x360 592x592x190 592x592x360 592x592x600
Number of pockets 7 7 10 6 6
Filter Class (EN 779) G4 G4 G4 G4 G4
Nominal air flow rate [m³/h] 3400 3400 3400 3400 3400
Average Arrestance ≥90% ≥90% ≥90% ≥90% ≥90%
Initial Pressure Drop 75 Pa 60 Pa 50 Pa 30 Pa 35 Pa
ISO Coarse KR-7/180 N ISO Coarse KR-7/360 N ISO Coarse KR-6/360 NG ISO Coarse KR-10/190 NG
Dimensions [mm] 500x500x180 500x500x360 592x592x360 592x592x190
Number of pockets 7 7 6 10
Filter Class (ISO 16890) ISO Coarse 50% ISO Coarse 60% ISO Coarse 70% ISO Coarse 55%
Nominal air flow rate [m³/h] 3400 3400 3400 3400
Initial Pressure Drop 75 Pa 60 Pa 30 Pa 50 Pa

All data given are based on test results determined according to EN 779 or ISO 16890. The data are average values subject to tolerances due to normal production fluctuations. The figures are only suitable for comparison with those of other products tested according to the same standard. Dust holding capacity according EN 779 is measured till a final pressure drop of 250 Pa, whereas according ISO 16890 the dust holding capacity is measured till 200 Pa. If higher final pressure drop levels are suitable, the dust holding capacity will be accordingly higher.
