Pre-filter Housing

in Filter Classes G3 - G4 and M6 - F9

VK - KW modular systems from EMW® are primarily used in air intake systems for turbomachinery, in the chemical and pharmaceutical industries as well as dust removal hoods at workplaces.

VK - KW modular systems consist of a fine filter cassette and a pocket filter mounted in a pre-filter housing. The pre-filter housing is mounted on the cassette and connects easily with fastening systems commonly found on filter consoles. This eliminates the need for a separate pre-filter console, therefore providing cost savings.

In addition to the standard configurations, VK - KW combined systems can be modified in a variety of ways to accomodate users' individual requirements.

Pre-filter Housing

Characteristics

  • Suitable for all standard EMW® minipleat compact cassettes in Filter Classes M6 - F9
  • Standard pre-filter: G3 / G4 pocket filter
  • Reliable operation even at 100% relative humidity
  • Reliable operation at temperatures up to 80°C
  • Corrosion-proof polystyrene housing, re-usable and fully incinerable

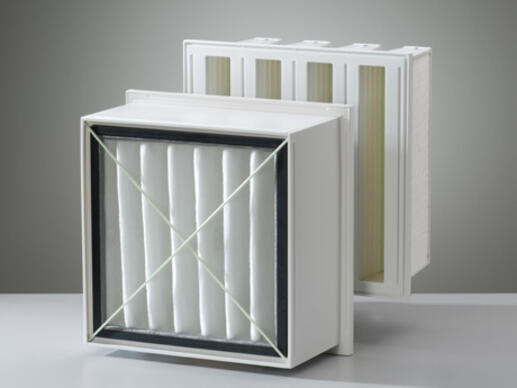

VK-KW3 pre - filter housing / short version
Dimensions: 595x595x561mm with MPK4-20 or 595x595x665mm with MPK4-31and pocket filter as pre - filter in 500x500x180mm

VK-KW3 pre - filter housing / long version
Dimensions: 595x595x696mm with MPK4-20 or 595x595x800mm with MPK4-31 and pocket filter as pre - filter in 500x500x360mm

VK-KW4 pre - filter housing / short version
Dimensions: 602x602x561mm with MPK4-20 or 602x602x665mm with MPK4-31 and pocket filter as pre - filter in 592x592x190mm (installation dimensions 595x595mm)

VK-KW4 pre - filter housing / long version
Dimensions: 602x602x696mm with MPK4-20 or 602x602x800mm with MPK4-31 and pocket filter as pre - filter in 592x592x360mm
