MPC & MPZ GTP
Pulse filters are self-cleaning filter elements that effectively dislodge adhering dust particles through a pulsating mechanism, thereby ensuring extended usability and reduced pressure drop.

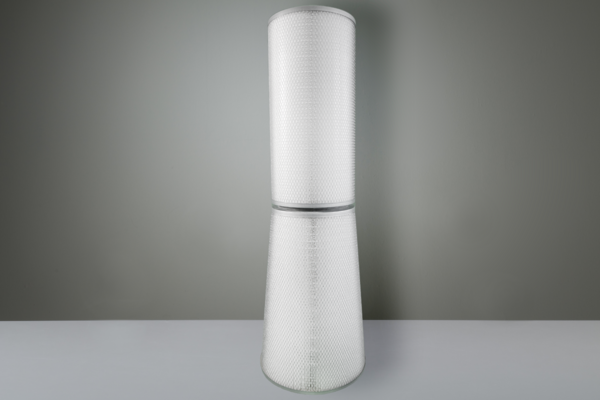

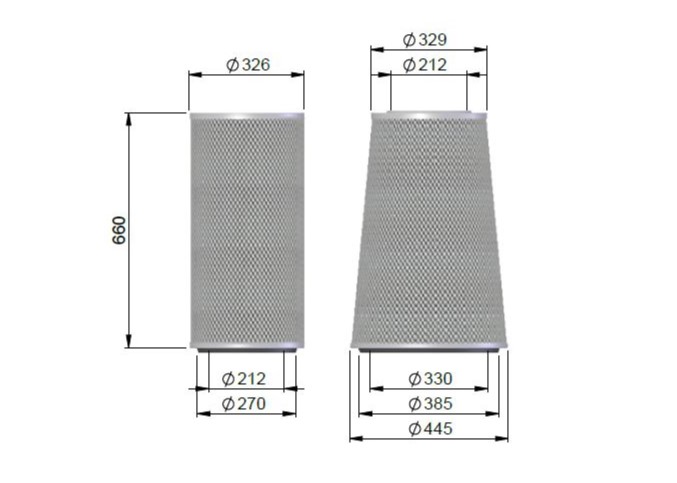

EMW® pulse filters are comprised of both conical and cylindrical filter elements. Standard dimensions for cylindrical filters are (D x H) 326 x 660 mm, while conical filters come in sizes of 445/329 x 660 mm. The MPC & MPZ ECO-85 GTP variant is classified with an ISO ePM1 85% filter efficiency according to ISO 16890 (formerly F9 according to EN 779). EMW's pure series are also availble with hybrid water-repellent mediain E10, E11 or E12 according to EN1822. EMW's unique pleat design guarantees minimal and stabilized pressure loss during operation.

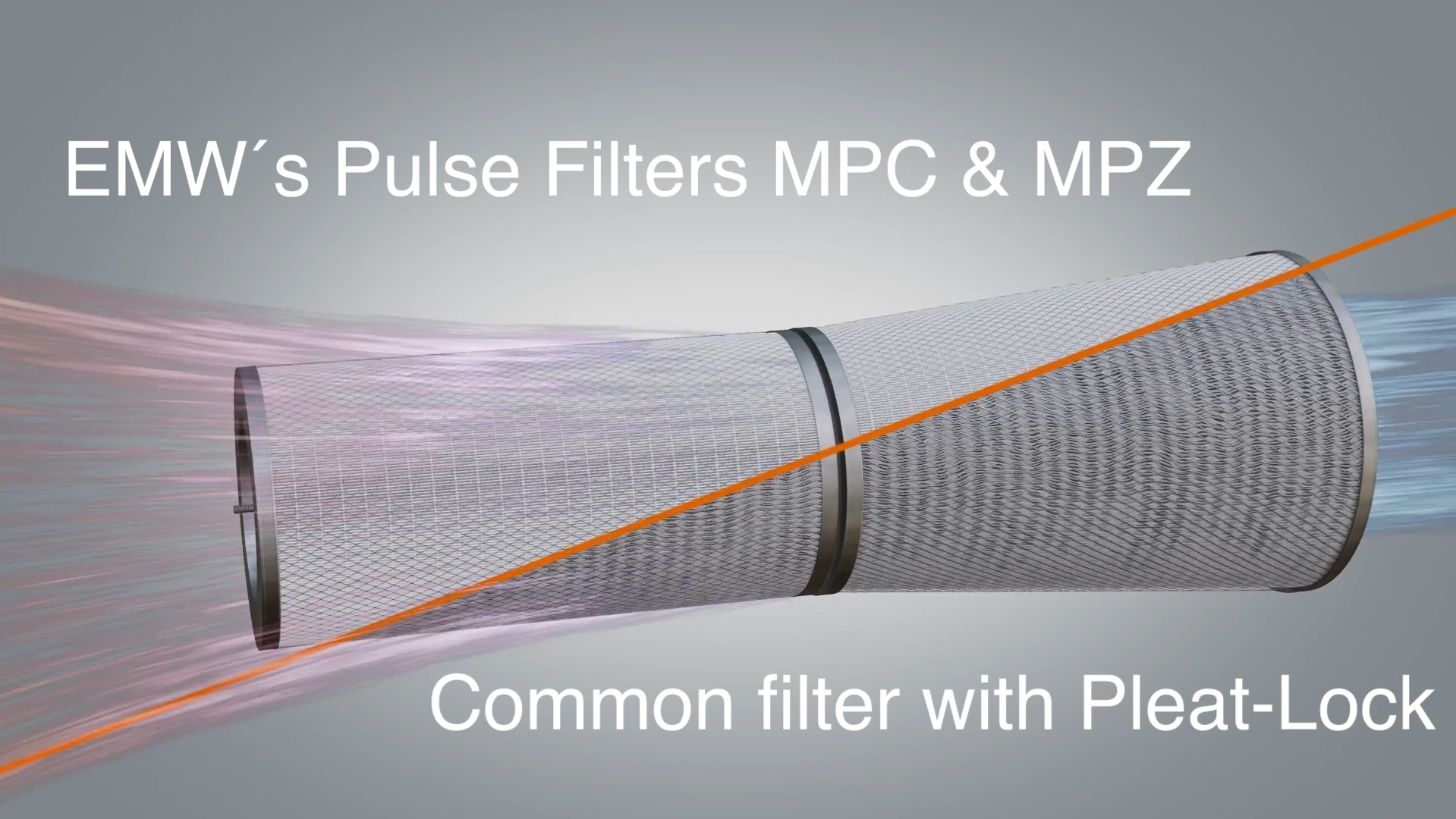

Click on the image to stop the animation and manually rotate it.
Further dimensions of cartridge filters are available on request.
Slide through the efficiency of EMW®'s unique pleat design by navigating through the slides below!

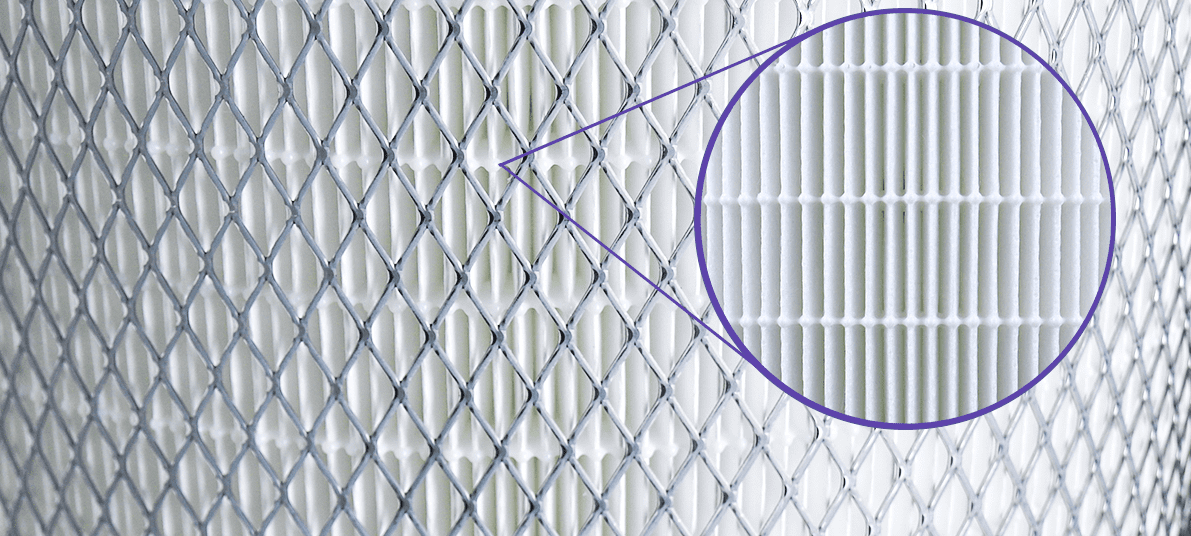

EMW® Pulse Filters impress with a revolutionary pleat design that provides maximum stability for the filter media.

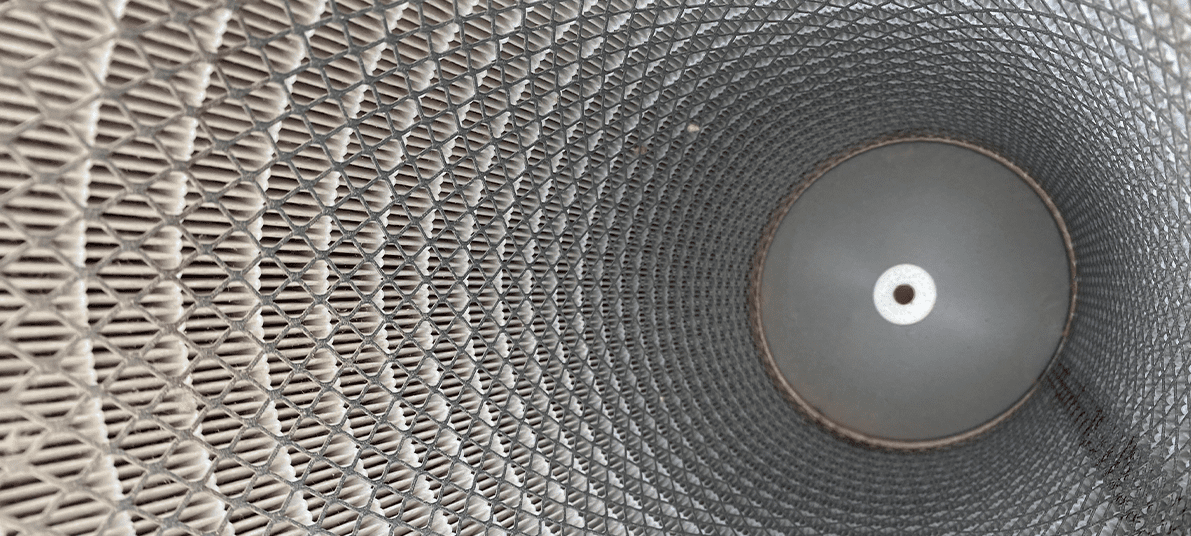

The interior of the EMW® Pulse Filter, even after use, maintains an intact pleat design, ensuring minimal pressure differential development during operation.

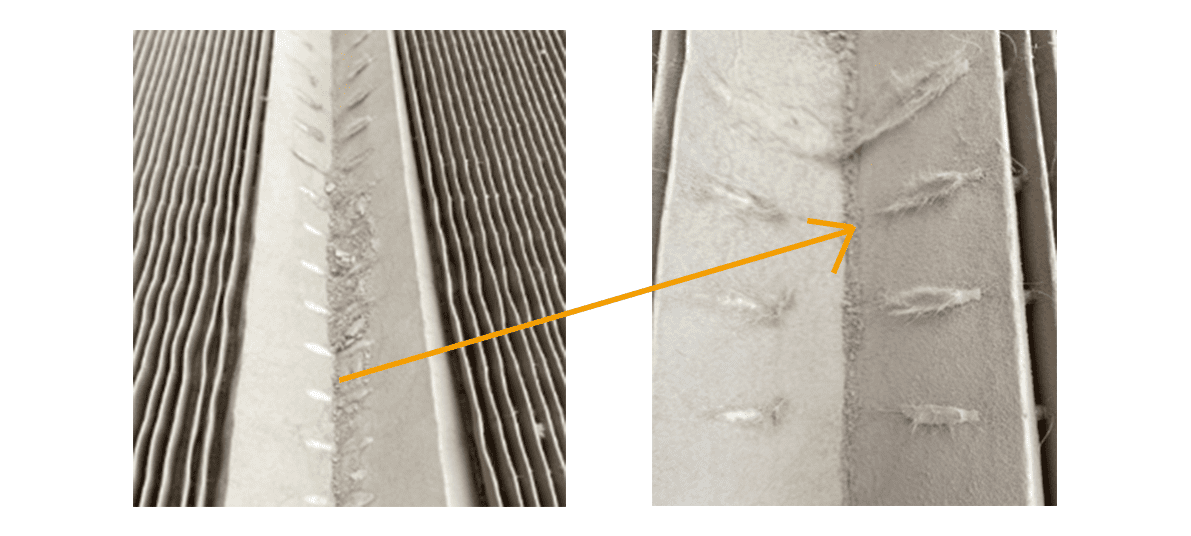

Unfolding a section of the EMW® Pulse Filter reveals its meticulously engineered media structure. This innovative design ensures optimal utilization of the entire filter surface, significantly extending the filter's operational lifespan.
| MPC & MPZ ECO-85 GTP | ||
|---|---|---|
| Designated Filter Group ISO 16890 | ISO ePM1 85% (formerly F9 / EN 779) | |
| Further Filter Groups acc. to ISO 16890 | PM2,5 90% PM10 >95% | |
| Nominal air flow rate | 2500 m³/h | |
| Initial pressure drop |
145 Pa |
|
| Temperature Resistance |
max. 80°C |
|
| MPC & MPZ Pure-E10 GTP | |
|---|---|
| Filter Class acc. to EN 1822 | E10 |
| Nominal air flow rate | 2500 m³/h |
| Initial pressure drop |
175 Pa |
| Temperature Resistance |
max. 80°C |
| MPC & MPZ Pure-E11 GTP | |
|---|---|
| Filter Class acc. to EN 1822 | E11 |
| Nominal air flow rate | 2500 m³/h |
| Initial pressure drop | 195 Pa |
| Temperature Resistance | max. 80°C |
| MPC & MPZ Pure-E12 GTP | |
|---|---|
| Filter Class acc. to EN 1822 | E12 |
| Nominal air flow rate | 2500 m³/h |
| Initial pressure drop |
260 Pa |
| Temperature Resistance |
max. 80°C |
All data given are based on test results determined according to ISO 16890 or EN 1822. The data are average values subject to tolerances due to normal production fluctuations. The figures are only suitable for comparison with those of other products tested according to the same standard.
