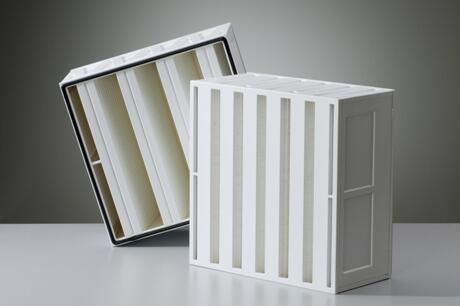

Filter Boxes

in Filter Classes M6 - H14

EMW® filter boxes provide extremely high filter surface areas ranging up to 40m². They are primarily used in turbomachinery air intake systems, ventilation and air conditioning systems, laboratories, chemical and pharmaceutical plants as well as dust removal hoods at workplaces.

Their innovative minipleat technology with hot melt pleat fixation ensures optimum utilization of filter surface and highest physical strength. The filter media used in these filter cassettes are high quality, wet-laid glass-fibre materials.

Characteristics

  • Filter classes M6 - H14 (EN 779 / EN 1822)
  • water-repellent
  • Reliable operation even at 100% relative humidity
  • Reliable operation at temperatures up to 80 °C
  • Filter media joined to frame with cast airtight joint
  • Seamless foamed-in-place-seal
  • Corrosion-proof polystyrene housing, fully incinerable

Application Fields

  • Gasturbines
  • Heating, ventilation, air conditioning (HVAC)
  • Laboratories
  • Chemical and pharmaceutical plants
  • Fume and dust removal hoods at workplaces

Technical Data

Cassette type MPB47-22 MPB48-22 MPB49-22
Filter Class F7 F8 F9
Air flow rate [m³/h] 3400 3400 3400
Average weight arrestance [%] > 99 > 99 > 99
Average efficiency [%] 0.4 µm ≥ 80 ≥ 90 ≥ 95
Initial pressure drop [Pa], 3400 m³/h 77 87 95
Dust holding capacity** [g] at 450Pa, 3400 m³/h 498 438 508
Cassette type MPB610-40 MPB611-40 MPB612-40 MPB613-40 MPB614-40
Filter Class E10 E11 E12 H13 H14
Air flow rate [m³/h] 3400 3400 3400 3400 2700
Efficiency at MPPS [%] ≥ 85 ≥ 95 ≥ 99.5 ≥ 99.95 ≥ 99.995
Initial pressure drop[Pa] 160 170 230 250 245

*All data given are based on test results determined according to EN 779 or EN 1822. The data are average values subject to tolerances due to normal production fluctuations. The figures are only suitable for comparison with those of other products tested according to the same standard.
**Dust holding capacity was determined according to EN 779 up to a final pressure differential of 450 Pa. Operation to higher final pressure differentials results in increased dust holding capacity.

Standard dimensions:

- 610 x 610 x 292 mm

- 610 x 610 x 150 mm

- 305 x 610 x 292 mm

- 305 x 610 x 150 mm

- 592 x 592 x 292 mm

- 287 x 592 x 292 mm
