ATEX Air Filters

Suitable for All Explosion Hazard Zones!

EMW® now offers electrically dissipative ATEX-certified air filters for use in potentially explosive environments.

All ATEX air filters offered by EMW® provide directive-compliant safety over the entire range of ATEX explosive groups and hazardous zones.

Characteristics

  • Electrostatically dissipative ATEX air filters for safe operation with all explosive groups and in all hazard zones as specified in the ATEX Directive
  • Available in filter classes including EN 779 classes M6 - F9 and EN 1822 classes E10 - H14
  • water-repellent
  • Required ATEX documentation supplied with filters
  • Lightweight plastic frames include connector elements for earthing
  • Earthing cables and fastening hardware provided with each filter
  • Wide service temperature range: -40°C to +80°C
  • Long service life due to low initial pressure drop with minimal increase in subsequent operation

The ATEX Directive

ATEX Zonen



The name ATEX comes from the French: "ATmosphères EXplosibles". The applicable regulatory code in Europe is Directive 2014/34/EU (old designation 94/9/EC). This directive specifies that equipment and protective systems operated in potentially explosive atmospheres must be capable of dissipating electrostatic charge. Air filters used in these hazardous areas must also meet this requirement.

ATEX Hazardous Zones

Zones (Dusts / Gases) Definition
20/0 Explosive atmosphere is present continuously, or for long periods or frequently.
21/1 Explosive atmosphere is likely to occur in normal operation occasionally.
22/2 Explosive atmosphere is not likely to occur in normal operation but, if it does occur, will persist for a short period only.

ATEX Air Filters from EMW®

EMW® now offers a special range of air filters designed for use in potentially explosive environments. All versions are electrostatically dissipative and full compliance with ATEX Directive 2014/34/EU (old designation 94/9/EC) for use in hazardous areas. A wide variety of compact cassette filters, filter boxes and panel filters are available to meet users' diverse needs.

EMW®'s dissipative air filters can be used safely over the entire range of explosive groups and in all hazardous zones specified in the ATEX Directive. They are made with electrically dissipative plastic frames which are lighter in weight than conventional materials such as metals. This facilitates installation and also makes the filter fully incinerable, therefore reducing disposal costs.

Special Anti-Static Design Combined with High-Performance Filtration

All conductive and dissipative components used in ATEX zones must be reliably earthed (i.e. grounded) to permit proper electric discharge. EMW® filter boxes and panel filters are earthed by means of integrated earthing lugs combining dependability and user-friendliness. EMW® compact cassette filters incorporate recesses on the inlet and outlet sides of the filter frame which are used to mount the earthing lug on either side as desired. The earthing lug and its mounting hardware are supplied along with the filter system.

EMW®'s ATEX filters are made with high quality glass fibre media providing outstanding filtration efficiency. The filter material's superb quality and innovative minipleat configuration ensure optimum utilization of filter surface area along with heavy-duty strength. Standard versions with up to 40 m² filter area as well as individualized versions with custom dimensions are available in filter classifications ranging from M6 to H14.

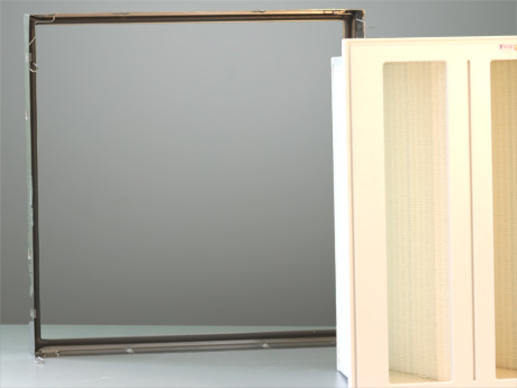

Plastic Frame
The frames of EMW ATEX air filters are made of electrically dissipative plastic, avoiding the excess weight of metal frames. The result: outstanding ease of installation.
Anti-Static Design
EMW ATEX filter boxes and flat filters are supplied with integrated earthing lugs. EMW® compact filter cassettes have pre-formed mounting recesses on the inlet and outlet sides of the filter frame. Their earthing lug, supplied with the filter cassette, can be conveniently mounted on either side as desired.

Dimensions

Type

Type Filter Area Dimensions (W x H x D)
Compact Cassette 2 m2 287 x 287 x 296 mm
Compact Cassette 9 m2 592 x 592 x 155 mm
Compact Cassette 9 m2 287 x 592 x 296 mm
Compact Cassette 13 m2 490 x 592 x 296 mm
Compact Cassette 20 m2 592 x 592 x 296 mm
Type Filter Area Dimensions (W x H x D)
Filter Boxes 7 m2 305 x 610 x 150 mm
Filter Boxes 10 m2 610 x 610 x 150 mm
Filter Boxes 11 m2 287 x 592 x 292 mm
Filter Boxes 12 m2 448 x 448 x 292 mm
Filter Boxes 16 m2 305 x 610 x 292 mm
Filter Boxes 22 m2 592 x 592 x 292 mm
Filter Boxes 40 m2 610 x 610 x 292 mm
Type Filter Area Dimensions (W x H x D)
Panel Filter 7 m2 610 x 610 x 48 mm
Panel Filter 10 m2 610 x 610 x 78 mm
Panel Filter 14 m2 610 x 610 x 110 mm
Panel Filter 16 m2 610 x 610 x 150 mm
