SYNFASAN®

Synthetic media in Filter Classes G3 - M5, ISO Coarse, ISO ePM10

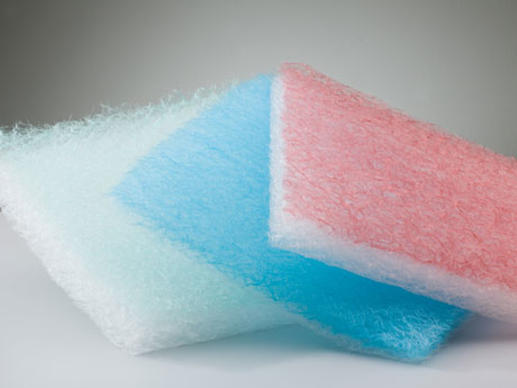

SYNFASAN® U15 - U50 are outlet-side compressed polyester nonwoven filter media available in Filter Classes G3 - G4 according to EN 779. SYNFASAN® is used for coarse dust removal in prefiltration, as a cut-to-size flat panel or as a "Z" pleated filter housed in an exchangeable plastic frame. SYNFASAN® is also available in an optional version incorporating a plastic reinforcing grid on the outlet side. SYNFASAN® media are environment-friendly products made without bonding agents of any kind.

SYNFASAN® C2 - C5G are synthetic-fibre nonwovens compressed on their outlet side to varying degrees of compression, satisfying EN 779 Filter Classes up to M5 / ISO ePM10. SYNFASAN® C5G is adhesive-activated for improved dust holding capacity and also incorporates a reinforcing grid. It is ideal for use e.g. as a ceiling filter in application stations for enamels and other coatings.

Characteristics

  • Filter Classes G3 – M5 available (EN 779)
  • Filter Classes ISO Coarse, ISO ePM10 (ISO 16890)
  • Dependable service even at 100% relative humidity
  • Max. service temperature: 100 °C
  • Fully incinerable

Application Fields

Installation configurations

  • Panel filters, e.g. for ceiling installation
  • Panel filters housed in exchangeable EMW plastic frames
  • Panel filters in combined filter systems
  • Z - line filters
  • Pocket filters for coarse dust removal

Dimensions

    Standard roll sizes:
  • - 2000 x 20000 mm
    - 2000 x 40000 mm
  • Wide range of cut-to-size sections available on request

Technical Data

U15 U25T
Thickness[mm] 10 15
Face Velocity [m/s] 1.5 1.5
ΔP initial[Pa] 27 30
ΔP final[Pa] 250 250
Filter class EN 779 G3 G3
Dust holding capacity ** [g] 330 400
U29B U35 U50 Z-Line 22 pleats
Thickness[mm] 22 19 20 4
Face Velocity [m/s] 1.5 1.5 1.5 1
ΔP initial[Pa] 50 50 100 55
ΔP final[Pa] 250 250 250 250
Filter class EN 779 G4 G4 G4 G4
Dust holding capacity ** [g] 460 460 450 200
C2 C3 C5G
Thickness[mm] 10 20 20
Face Velocity [m/s] 0.25 0.25 0.25
ΔP initial[Pa] 15 35 35
ΔP final[Pa] 450 450 450
Filter class EN 779 M5 M5 M5

* : The data given are typical figures. The exact operating data in a specific application may vary in accordance with dust composition as well as other local conditions.
** : Dust holding capacity was measured at the recommended final pressure differential. Depending on the installation configuration and other details of the specific application, filters may be operated to higher or lower final pressure differentials; the dust holding capacity will change accordingly.
